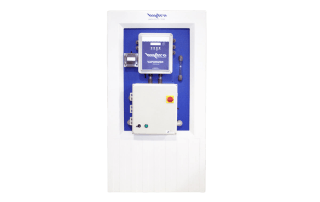

VPH 10000 - Vaporizer

Used to vaporize Liquid Cl2 to gas Cl2

Available Maximum Capacities:
-15,000 PPD (300 Kg/h) Cl2
-9,600 PPD (180 Kg/h) SO2
-3,000 PPD (60 Kg/h) NH3

Available Heaters:
18 kW (Up to 10,000 PPD Cl2)
20 kW (Up to 12,000 PPD Cl2)
30 kW (Up to 15,000 PPD Cl2) for ver.1A

ASME section VIII certified pressure chamber with “L” certification stamp for lethal gas requirement

Stainless steel water tank w/ 1.5″ drain valve

Automatic water level control

Cathodic corrosion protection system

SCR controlled heaters for maximum life and minimal energy consumption

Utilizes recirculation pump for improved heat transfer efficiency
Electronic controller monitors vaporizer operation and superheat temperature
