QUICK SPECS
Designed for weighing cylinders up to 12” in diameter
Two independent weighing disks
Base size: 32″x18″
Net capacity: Up to 150 lbs. (68 or 70 kg) per disk
High accuracy of ±0.1% of capacity
AccuPro 5000 dual channel controller with easy readability to 0.1 lb. (kg)
Readout in pounds, kilograms, gallons or liters
Patented
The Ideal Weighing Solution for Applications Requiring Frequent On/Off Loading of Gas Cylinders

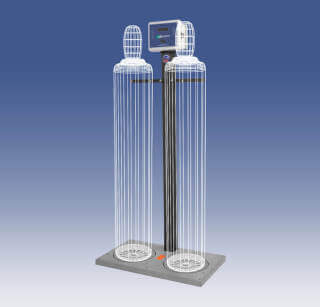

The Model 2350 Digital Dual Cylinder Scale is designed for weighing two gas cylinders up to 12″ in diameter simultaneously and offers a net capacity of up to 150 lbs. Featuring corrosion resistant construction and three-point suspension on the weighing disks, the low-profile base allows for safe and easy handling of cylinders. Indicators are available from 2 to 4 channels with 4-20 mA outputs and optional set point relays. MADE IN USA.
Standard Features
Rugged steel construction protected by a corrosion resistant, zinc oxide primed and dry powder coated finish, with molded fiberglass reinforced thermoplastic base and weighing disks for use in harsh environments
Low profile platform design (1 1/2″) increases safety and ease of cylinder handling
Accommodates off-center loads – cylinders may be placed anywhere on the disks and still obtain an accurate reading
Six (6) stainless steel bending beam, temperature compensated load cells
All hardware is stainless steel to prevent corrosion
Electronic indicator housed in NEMA 4X, UL approved enclosure to provide protection from acids
Cylinder support and chains
Available Controllers
AccuPro 1000 Digital Controller with 2 channels, 4 button keypad and optional 4-20 mA output signal – scale or loop powered
AccuPro 5000 Digital Controller with 2 channels, encoder knob or 3 button keypad, audible alarm and 4-20 mA output signal – scale or loop powered
AccuPro 6000 Digital Controller with 2 channels, touch screen and 4-20 mA output signal – scale powered
Options
High and low level set points
0-5V or 0-10V output signal
Audible alarm
Modbus communication
Remote mounting of indicator box up to 200 feet (61 meters) away – includes junction box and additional length of 8 conductor wire cable
Chemicals
Scale is designed to accurately measure weight of ammonia, carbon dioxide, hydrogen chloride, liquefied chlorine, sulfur dioxide and other liquid gases
